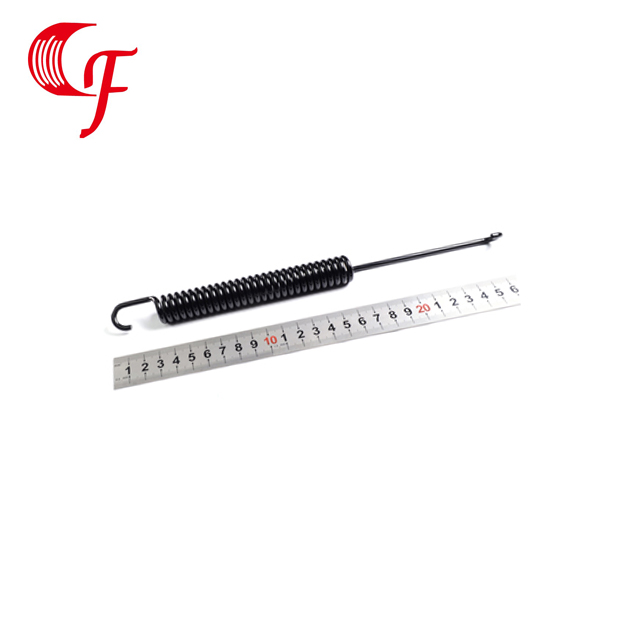

Windshield Wiper Arm Spring: Function, Characteristics, Applications, and Maintenance

Introduction

The Windshield Wiper Arm Spring is a critical component in a vehicle's wiper system, ensuring consistent and effective contact between the wiper blade and the windshield. This spring applies the necessary downward force to maintain optimal wiping performance under various conditions, including rain, snow, and debris. Its design and material properties are engineered to withstand repetitive motion, environmental stressors, and mechanical wear.

Key Characteristics and Technical Data

• Material Composition: Typically made from high-carbon steel (SAE 1070-1090) or stainless steel (Grade 301/304), offering tensile strengths ranging from 1,000 to 1,500 MPa for durability and corrosion resistance.

• Spring Force: Generates a consistent force of 8–12 N (Newtons) per wiper arm to ensure uniform blade-to-glass contact without excessive pressure that could cause streaking.

• Operating Temperature Range: Functions reliably between -40°C to +85°C, maintaining elasticity in extreme climates.

• Fatigue Life: Designed for over 500,000 cycles to match the lifespan of modern wiper systems.

• Corrosion Resistance: Coated with zinc plating (5–8 µm thickness) or powder coating to prevent rust and degradation from road salt and moisture.

Applications

The Windshield Wiper Arm Spring is integral to:

• Passenger Vehicles: Ensures clear visibility during adverse weather by maintaining blade pressure across curved windshields.

• Commercial Trucks: Heavy-duty springs (15–20 N force) accommodate larger windshield surfaces and prolonged use.

• Public Transportation: Used in buses and trains, where reliability is critical for safety regulations.

• Marine and Aviation: Stainless steel variants resist saltwater and high-altitude conditions.

Maintenance Guidelines

1. Regular Inspection: Check for signs of rust, deformation, or reduced tension every 6 months or 10,000 miles.

2. Lubrication: Apply silicone-based grease to pivot points annually to reduce friction and prevent squeaking.

3. Cleaning: Remove debris from the spring coil with a soft brush and mild detergent to prevent corrosion.

4. Replacement Indicators: Replace the spring if blade contact becomes uneven, or if visible cracks or loss of tension occur.

5. Professional Servicing: For vehicles with aerodynamic wiper systems (e.g., BMW, Tesla), consult OEM guidelines to avoid calibration issues.

Conclusion

Proper maintenance of the Windshield Wiper Arm Spring ensures optimal performance and extends the lifespan of the entire wiper system, contributing to safer driving conditions.
