Extension Springs for Machinery: Technical Overview and Applications

2025-05-24 17:43:15

What Are Extension Springs?

Extension springs are helical springs designed to resist tensile forces, absorbing and storing energy when stretched. These springs are characterized by initial tension (typically 15-25% of their maximum load capacity), which keeps coils closed until external force is applied. Key technical specifications include:

  • Spring rate: Ranges from 0.1 N/mm to 50 N/mm depending on wire diameter (0.2-10mm) and coil count

  • Material: Commonly made from music wire (ASTM A228) with tensile strength of 1900-2300 MPa or stainless steel (302/304) with 1700-1900 MPa

  • Maximum elongation: Typically 150-200% of free length before permanent deformation occurs

  • Temperature range: Standard springs operate between -40°C to 120°C; special alloys extend this to 300°C

Advanced extension springs may incorporate features like double hooks (withstand 20-30% higher loads than standard hooks) or threaded inserts for applications requiring over 10,000 cycles at 80% of maximum load.

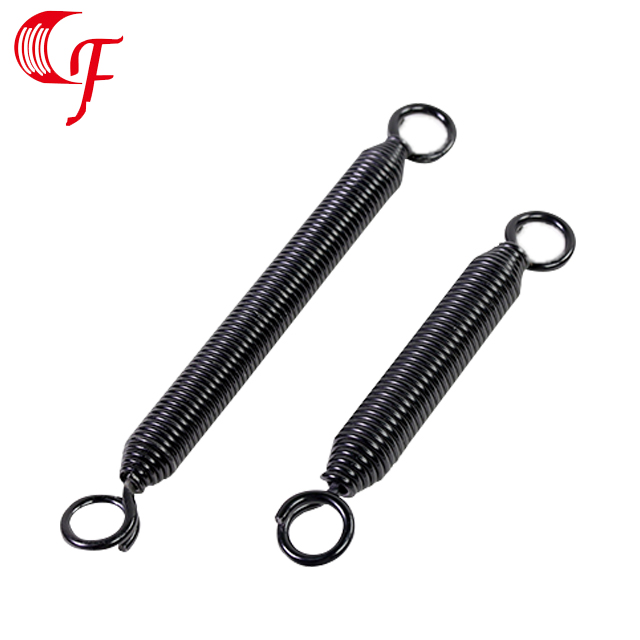

1748079787527137

Key Characteristics with Technical Data

1. Load Capacity: Industrial extension springs can handle static loads up to 5,000 N, with dynamic load ratings (for 10^6 cycles) typically 30-40% lower. For example, a 10mm diameter spring with 20 active coils made from 3mm wire can sustain 1,200 N at 100mm extension.

2. Fatigue Life: Properly designed extension springs achieve 500,000-1,000,000 cycles at 50% of ultimate tensile strength. Shot peening improves fatigue life by 30-50% by inducing compressive stresses of 400-600 MPa on the surface.

3. Hysteresis: Energy loss per cycle ranges from 5-15% depending on material and surface treatment. Silicon-chrome alloys show only 3-5% hysteresis compared to 8-12% for standard carbon steel.

4. Corrosion Resistance: 316 Stainless Steel Springs exhibit less than 0.1mm/year corrosion in salt spray tests (ASTM B117), compared to 0.5-1mm/year for uncoated carbon steel.

Industrial Applications

1. Automotive Systems:

  • Throttle Return Springs with 10-20N force and 50mm travel

  • Seat belt retractors using springs with 0.5-2 N/mm rate

  • Hood latch mechanisms requiring 150-300N pull force

2. Manufacturing Equipment:

  • CNC tool changers with springs rated for 5,000+ cycles/day

  • Conveyor tensioning systems using springs with 50-200mm travel

  • Die-cutting presses requiring 1,000-5,000N preload

3. Aerospace Applications:

  • Landing gear door mechanisms with springs meeting AMS 5112 specifications

  • Cargo door counterbalance systems using corrosion-resistant alloys

  • Flight control surface returns with ±0.5% force consistency over temperature

Medical devices represent a growing application sector, where extension springs with electropolished surfaces (Ra ≤ 0.4μm) are used in surgical robots and imaging equipment, requiring forces as low as 0.1N with micron-level precision.

Maintenance Procedures

1. Inspection Protocol:

  • Measure free length monthly (±0.5mm tolerance indicates wear)

  • Check for coil separation exceeding 10% of pitch

  • Monitor hook deformation (max 5° angular deviation from original)

2. Lubrication:

  • Apply dry film lubricants (e.g., PTFE-based) every 50,000 cycles

  • For high-temperature applications, use molybdenum disulfide paste (effective to 400°C)

  • Avoid petroleum-based lubricants in food processing equipment

3. Load Testing:

  • Quarterly verification of spring rate (should not deviate >5% from nominal)

  • Perform proof testing at 125% of working load annually

  • Use strain gauges for critical applications to monitor stress distribution

4. Replacement Criteria:

  • Permanent set >3% of free length

  • Visible cracks or pitting covering >10% of surface area

  • Force output variation >8% from specification

Installation Best Practices

Proper installation significantly impacts spring performance and longevity:

  • Preload should not exceed 30% of maximum allowable stress (typically 45-50% of material's tensile strength)

  • Alignment tolerance: ≤1° angular misalignment per 100mm of spring length

  • For parallel spring arrangements, load distribution should be within ±5% between springs

  • Use spherical seats or swivel joints when lateral movement exceeds 2% of compressed length

In corrosive environments, specify springs with zinc-nickel plating (5-15μm thickness) or Xylan® coatings, which reduce friction coefficients by 40-60% compared to uncoated springs while providing chemical resistance.
